Debugging Push Notifications on iOS

22 September 2021 — Xcode, Swift, symlinks — 2 min read

The real value/uniqueness on this page is showing how to use Console.app for push notifications. I also include some more basic guidance to help you avoid some common problems.

Use the debugger

Launch the application from Xcode (run, but ensure your scheme uses the Debug build configuration, not release or profile) or AppCode (debug mode). Place breakpoints in methods that should be called to confirm that your methods are (not) being called. Some useful methods:

Alert notification:
- Note: If you send a message without data, you won't be able to handle the notification in didReceiveRemoteNotification below. Instead, you can handle notification taps by the user, and decide to even show it if the app is in the foreground.
- Notification tap: didReceiveNotificationResponse:completionHandler:
- Foreground alert notifications: userNotificationCenter(_:willPresent:withCompletionHandler:)
Background notifications: application(_:didReceiveRemoteNotification:fetchCompletionHandler:)
- Don't use application(_:didReceiveRemoteNotification:), the deprecated version.

Request authorization from the user

If showing an alert notification to the user, be sure to requestAuthorization to show notifications from the user. This is not required if you just want background messages, handling messages in didReceive(_:completionHandler:). It's really easy to forget this.

Try sending it directly to APNs

You should do this when first debugging. This allows you to test push notifications without having to structure a message correctly, since this file does it for you. This also reduces the complexity/ layers in the problem when first debugging, since 3rd party services (Ably's Channels or Firebase Cloud Messaging). If the device is registered correctly, it should receive this message. Make sure to update the TEAMID, KEYID, SECRET, BUNDLEID and DEVICETOKEN. My colleague shared this script with me:

Usage: Get direct_apns.sh from this GitHub Gist. Run chmod +x direct_apns.sh and execute it: ./direct_apns.sh.

If the script failed with an error, check the error which is returned by APNs.
If the script was successful but it doesn't appear to arrive on the device, time to read the logs. (See below)
If this arrives on the device, but your own messages don't, this means you are not structuring your message correctly. For example, I've seen users who set apns-headers in Firebase at the wrong level of the JSON being sent to Firebase.

Reading device logs

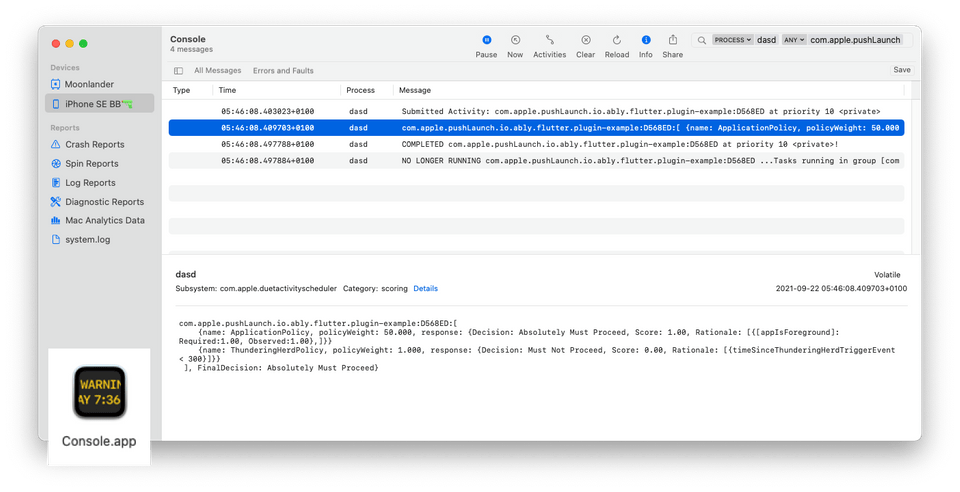

Open Console.app (this is different to Terminal.app or iTerm2.app) installed on your mac. To confirm your application received the push message/ check for errors related to push notifications:

Be sure to start logging for the correct dvice. Then find relevant logs by:

search for the following log messages:
- Both failures and success: com.apple.pushLaunch
- Failures only: CANCELED: com.apple.pushLaunch. For example, this may show the log line: CANCELED: com.apple.pushLaunch.com.example.app:DBA43D at priority 10
- Success only: COMPLETED com.apple.pushLaunch. For example, this may show the log line COMPLETED com.apple.pushLaunch.package_name:XXXXXX at priority 5
filter for dasd process either by right clicking a log line with dasd and click Show Process 'dasd'.

If you are sending a background notification, it may be throttled by iOS. In this case, an error will be shown in Console.app, but will eventually arrive to your application, where didReceiveRemoteNotification delegate method will be called, often within a few minutes. If you look in the Console.app logs, you may find sending the exact same message gives different outcomes:

ThunderingHerdPolicy error (What really is the ThunderingHerdPolicy?):

1{name: ThunderingHerdPolicy, policyWeight: 1.000, response: {Decision: Must Not Proceed, Score: 0.00, Rationale: [{deviceInUse == 1 AND timeSinceThunderingHerdTriggerEvent < 900}]}}
2  ], FinalDecision: Must Not Proceed}

cameraIsActive error:

1com.apple.pushLaunch.io.ably.flutter.plugin-example:4935F4:[
2{name: MemoryPressurePolicy, policyWeight: 5.000, response: {Decision: Must Not Proceed, Score: 0.00, Rationale: [{cameraIsActive == 1}]}}
3], FinalDecision: Must Not Proceed}

A successful delivery:

1{name: ApplicationPolicy, policyWeight: 50.000, response: {Decision: Absolutely Must Proceed, Score: 1.00, Rationale: [{[appIsForeground]: Required:1.00, Observed:1.00},]}}
2  ], FinalDecision: Absolutely Must Proceed}

Another successful delivery:

1com.apple.pushLaunch.io.ably.flutter.plugin-example:5E1C66:[
2{name: DeviceActivityPolicy, policyWeight: 5.000, response: {Decision: Can Proceed, Score: 0.25}}
3] sumScores:93.270000, denominator:97.020000, FinalDecision: Can Proceed FinalScore: 0.961348}

I initially wrote this to add Push Notifications support to a Flutter library. There might be more useful content there.

A note about environments (APNs sandbox vs production)

There are 2 environments, sandbox and production.
